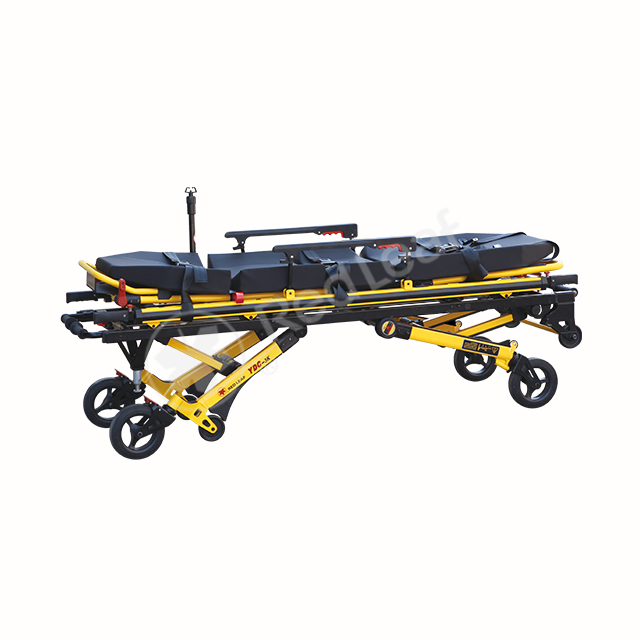

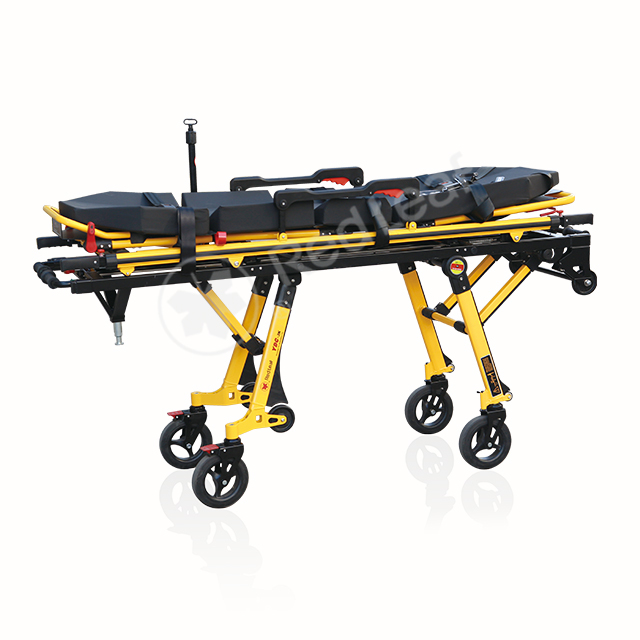

YDC-3K Ambulance Folding Stretcher

Used in hospital or emergency center to transport patient.
Availability:
Quantity:
  • YDC-3K

  • Red Leaf

  • 94029000

Technical features:

1. The main material is high-strength aluminum alloy.

2. The height of whole stretcher can be adjusted in more than 4 positions, is convenient

    for CPR operation.

The height of front part and back part can be adjusted in 6 positions.

3. The stretcher’s leg folding mechanism and height adjustment is controled through

    the front and rear pull rod operation.

4. The guardrail using polymer plastics, the adjustable structure is easy for patient to up

    and down the stretcher, this stretcher adopts shoulder belts.

5. It also equipped with a three-stage IV stand, the highest length is 80cm.

6. The mattress is made of wear-resistant mesh cloth, concave shape, with a thickness of

   10cm and disposable welding, flame retardant and waterproof.

7. The universal wheels on the front end adopts a elastic latch to lock. They can be locked

    to go straight or universal as needed.

8. It's better to use F07 one-piece fixed device, the fixing device uses 3-point fixation,

    which is stable and secure.

9. Loading height: 60cm       Wheel size: Φ150mm/Φ200mm

10.  Unfolded Size: 198 x 57 x 90cm (High position)           198 x 57 x 39cm (Low position)

       Packing Quantity: 1         Packing Size: 204 x 62 x 52cm
