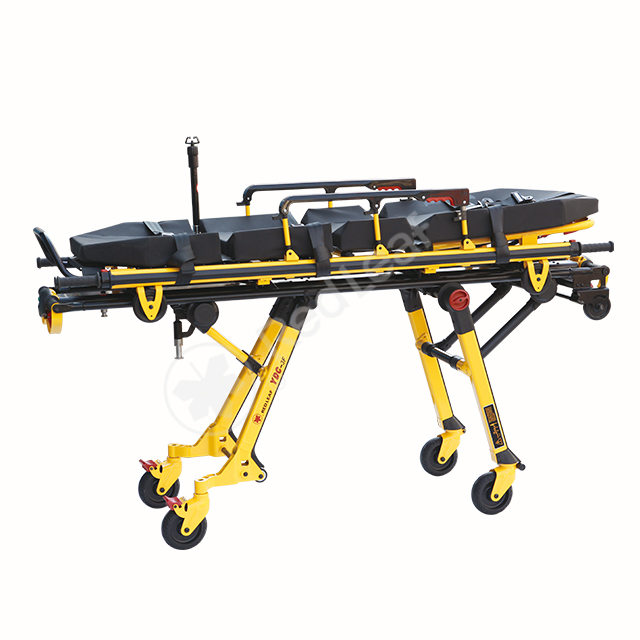

YDC-3F Ambulance Folding Stretcher

Used in hospital or emergency center to transport patient.
Availability:
Quantity:
  • YDC-3F
  • Red Leaf
  • 94029000

Technical features:

  1.  The main material is high-strength aluminum alloy which is hardened and surface treated.

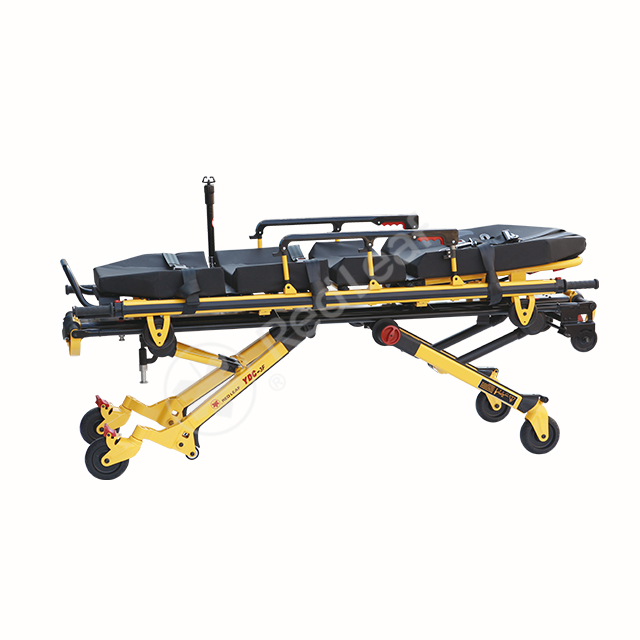

  2.  The height of whole stretcher can be adjusted in more than 4 positions, is convenient for CPR operation.

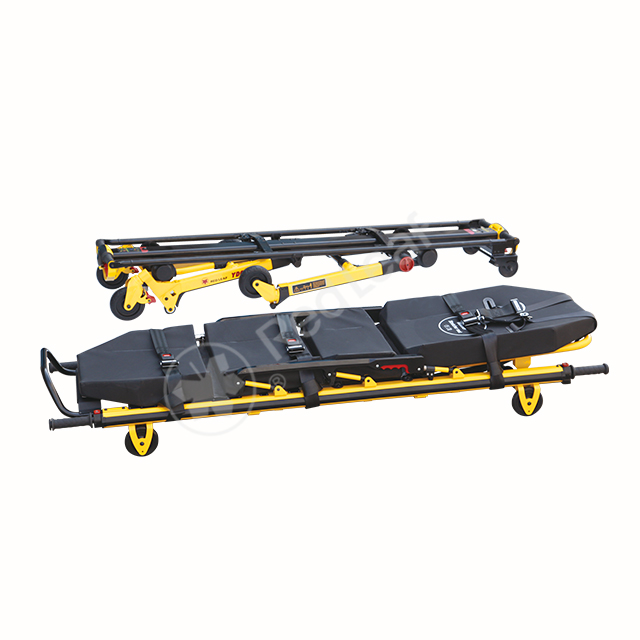

  3.  The stretcher adopts separated structure. The upper part can be as a simple stretcher.

  4. The locking mechanism is controlled by handles, it must be fixed with fixed device when loading onto the Ambulance.

  5. Mattress of the stretcher adopts PVC material concave shape. Thickness: 10 cm.

  6. The universal wheels on the front end adopts a elastic latch to lock. They can be locked to go straight or universal as needed.

  7. It's better to use F03 one-piece fixed device, the fixing device uses 3-point fixation, which is stable and secure.

  8. Loading height: 62cm        Wheel size: Φ150mm

 9.  Unfolded Size: 197 x 56 x 93cm (High position)           197 x 56 x 37cm (Low position)

       Packing Quantity: 1

       Packing Size: 204 x 61 x 52cm
