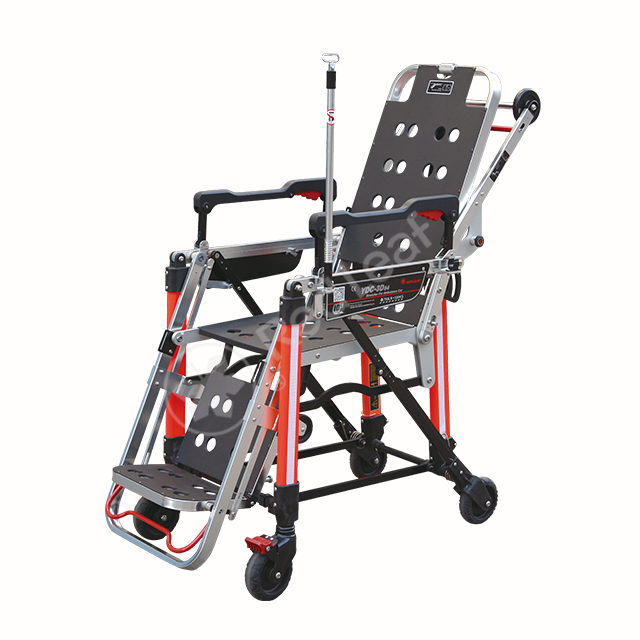

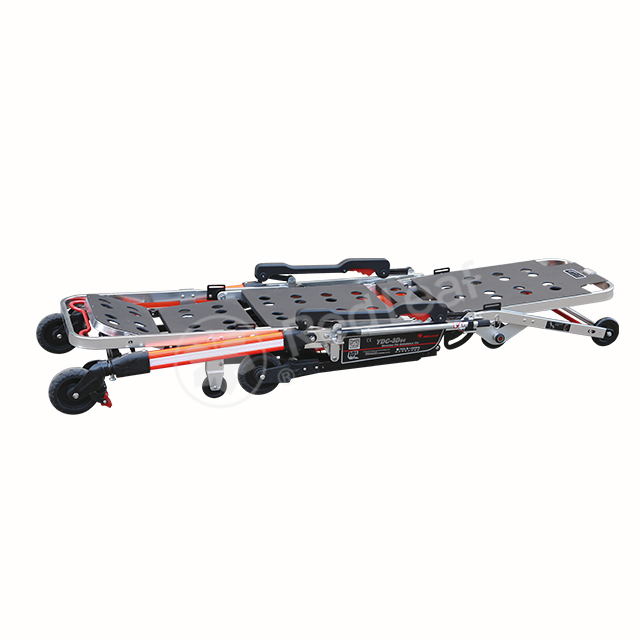

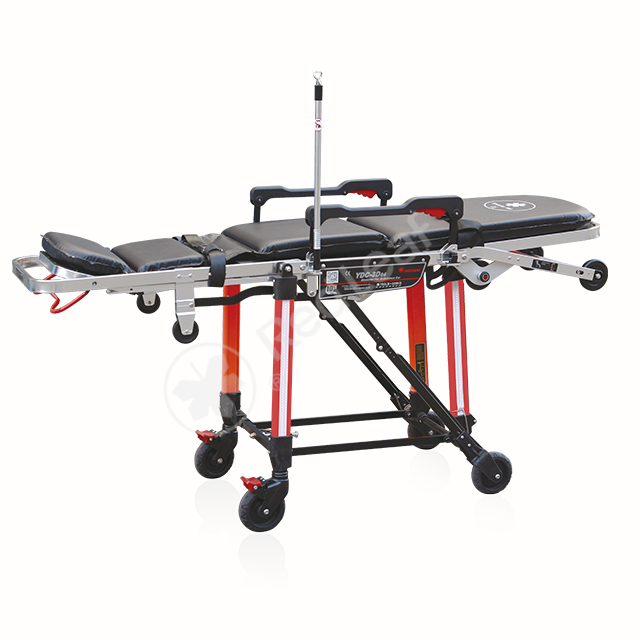

YDC-3D04 Ambulance Chair Stretcher

Used in hospital or emergency center to transport patient.
  • YDC-3D04
  • Red Leaf
  • 94029000

Technical features:

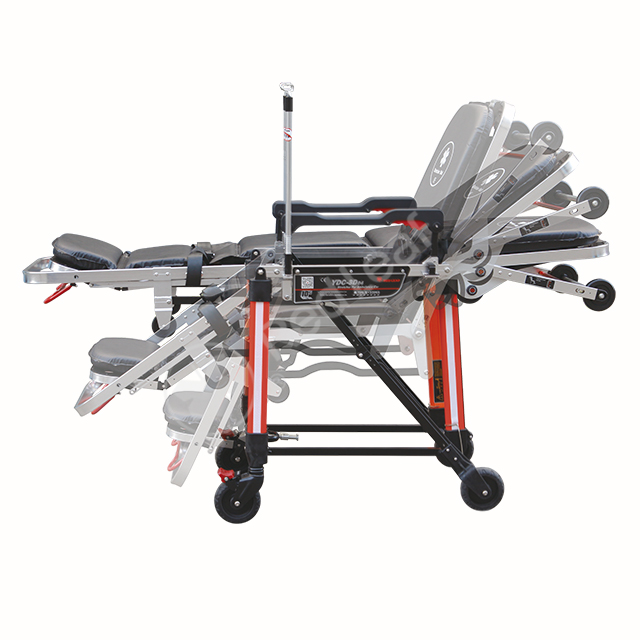

1. The stretcher bed can be quickly converted into a wheelchair, and has more than 4 types of height and angle position and foldable holding rods which can meet the needs to operate in narrow space.

2. This stretcher can pass small lifts and narrow space. The length is adjustable, length adjustment adopts bayonet type synchronous folding mechanism.

3. The legs of the stretcher can lock automatically when be unloaded from the ambulance.

4. Equipped with polymer plastic adjustable guardrails and vest three-point style safety belts.

5. The mattress is seamless welded with sealed high density polyethylene coated nylon material,  thickness 80mm. It also equipped with high-strength hook firmly connecting the stretcher bracket.

6. Equipped with adjustable two-stage I.V. Stand, The maximum adjustable length is 100cm;

7. It is equipped with gas-spring support backrest, the patient can quickly transform from sitting to a half-lying or lying position, making it faster to do CPR or tracheal intubation.

8. It adopts fluorescent color warning design.

9. Auxiliary accessories: Oxygen bottle holder, placing planes for defibrillator and ventilator ect.

10. Loading height: 66cm  Wheel size: Ø150mm

11. Unfolded Size: 190 x 58 x 84cm(High position)           190 x 58 x 27cm(Low position)

      Packing Quantity: 1

      Packing Size: 201 x 64 x 35cm
