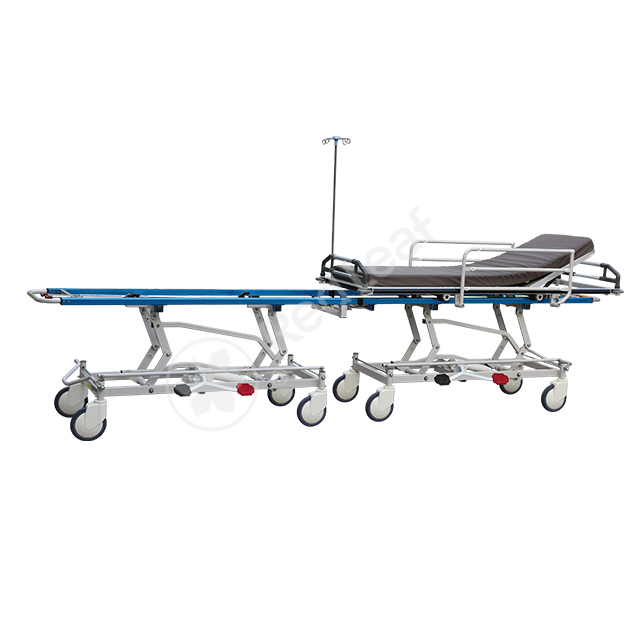

YQC-3LL Operation Connected Trolley

Used in hospital transport patient.
  • YQC-3LL

  • Red Leaf

  • 94029000

Technical features :

1. The connecting trolley is made of high-strength aluminum alloy.

2. It is used to transport patients between operating room and wards in hospitals.

3. Mat is sewed high density polyethylene coated PVC material, built-in peak sponge. Thickness 10cm.

4. Equipped with adjustable three-stage I.V. Stand, The maximum adjustable length is 80cm

5. The surface can be separated from the bed, and can be used as a stretcher alone.

6. The trolley adopts hydraulic lifting mechanism, and the backrest angle is adjusted by gas spring.

7. The universal wheels can be controled in three positions by front and back foot pedal: go straight, universal,  locked.

8. Wheel size: Ø200mm.

9. A part                                                                              B part

    High position: 200×74×93cm                                           High position: 200×65×85cm

    Low position: 200×74×54cm                                            Low position: 200×65×47cm

    Packing quantity: 1                                                           Packing quantity: 1

    Packing size: 213×75×71cm                                            Packing size: 205×67×47cm
