| Quantity: | |
|---|---|

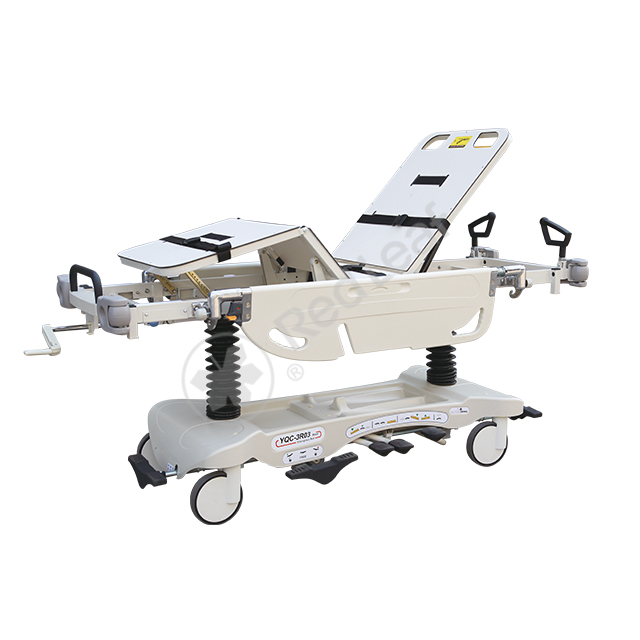

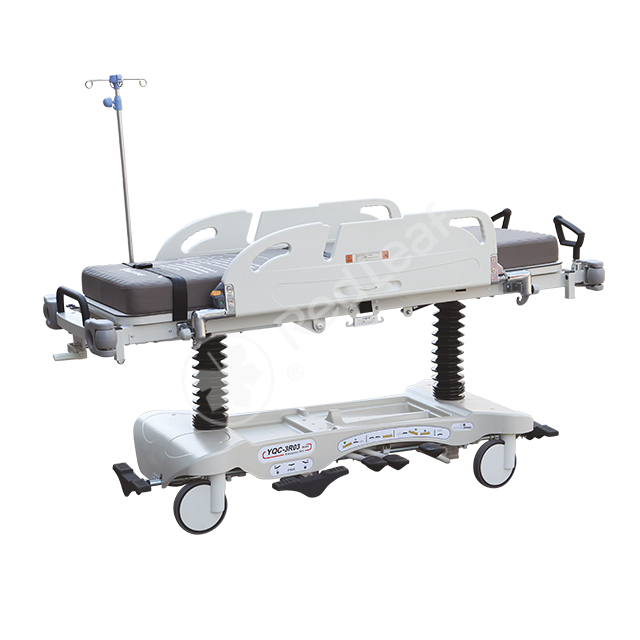

YQC-3R03
Red Leaf
94029000
Technical features :
1. This model is designed with a unique flip-up guardrail system incorporating dual safety locking mechanisms, enabling the guardrail to be horizontally extended to increase the bed surface width.

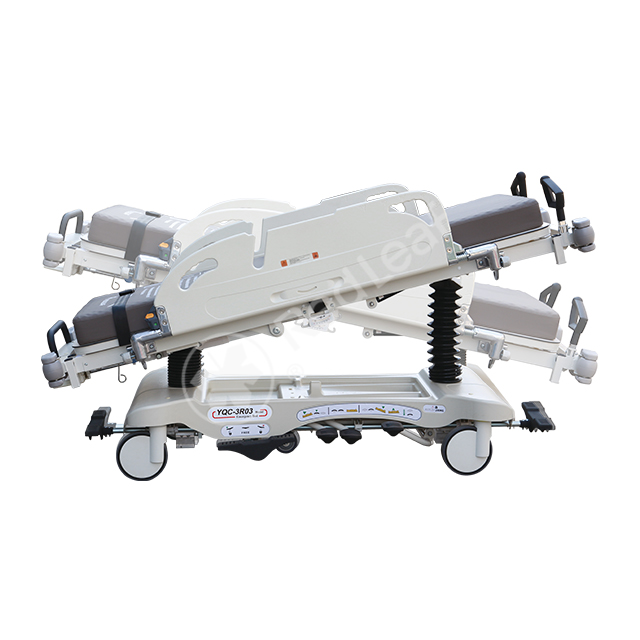

2. It is equipped with a high-quality double hydraulic cylinder system, precisely controlling the height adjustment and anterior-posterior tilting functions of the bed.
3. The backrest angle adjustment is controlled by a gas spring device.
4. The unit is fitted with φ200mm central-controlled silent caster, enabling synchronized locking and unlocking of all four wheels.
5. It is equipped with a central steering system that enables effortless transition between "straight-line" and "multi-directional" movement modes.
6. The knee section of the rescue bed is equipped with a hand crank, enabling precise angular adjustment.
7. The unit is equipped with a tray, an IV stand, and hooks.
8. High position: 216×80×92cm Low position: 216×80×60cm
Packing quantity: 1 Packing size: 223×87×81cm
