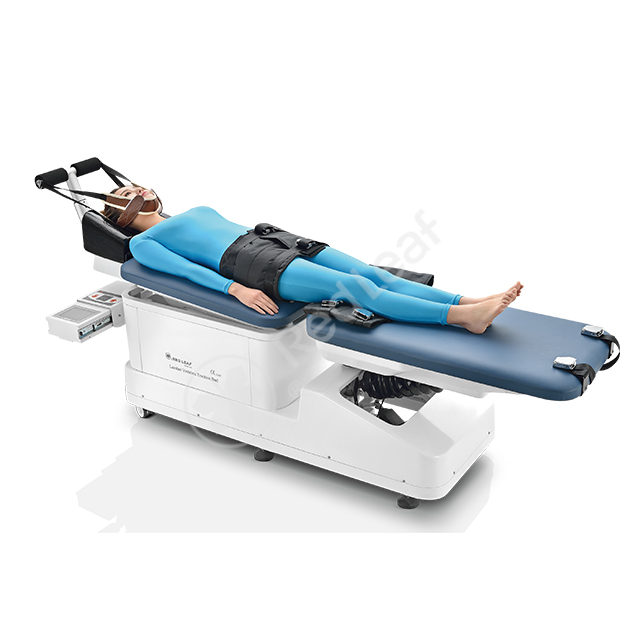

YHZ-60F Lumbar vertebra traction bed

Applicable to the treatment of every kind of cervical and lumbar vertebra disease .
  • YHZ-60F

  • Red Leaf

  • 94029000

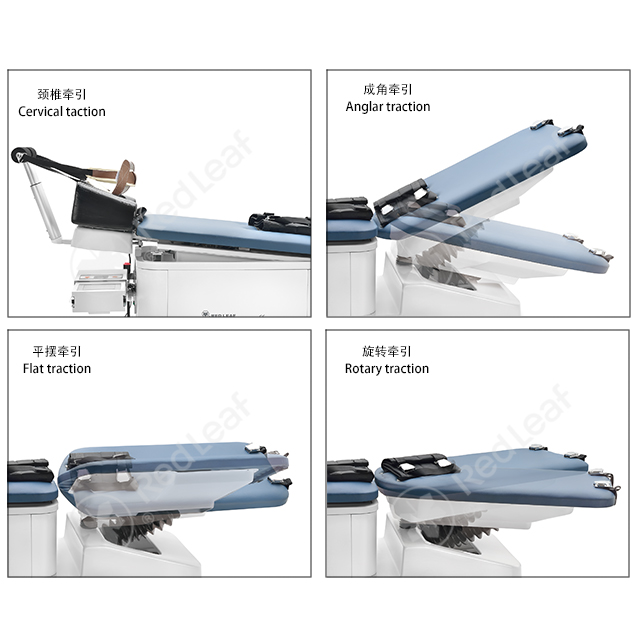

   This bed is three dimensional Lumbar Traction Bed, the traction force, traction time, traction mode, raising angle and swinging angle are all controlled by microcomputer. LCD window display and motor driven are intellectualized fully. The raising angle and swinging angle apply rotary code to getting more accurate angle. It has reliable effect especially for the calibration and recover of posterior small joint dislocation. At clinical practise, longitudinal, angled and swing traction can be used separately or combinedly. When tracting longitudinally, it can carry on swinging traction and angled traction (when lying on back, it can carry on negative traction). Simultaneously  it can over come the insufficience of single traction and fulfill more directions traction.

   Applicable to the treatment of every kind of lumbar vertebra disease Traction. Like lumbar vertebra illness: lumbar disc projection, denaturation confusion, strain, dislocation & in-complete paraplegia & hemiplegia complicated symptoms. (According to the disease status,  it could take resupine or prostrate traction.)

(Please use under the guidance of doctor)

Technical features:

1. The Traction speed, traction power for lumbar vertebra, traction power for  cervical, cervical and lumbar heating, total time, continuous time, intermission time, stepwise time,  back and waist angular degree, swinging angle, level swing traction, all are controlled by microcomputer;

2. Large LCD screen (LCD size: 155×85mm);

3. 20 kinds of therapy methods memory,  Auto compensatory function of  traction force;

4. 8 kinds of different traction mode (continuous mode, intermittent mode, cascade mode);

5. Several design (Max traction force 999N, the patient’s quick reset button, operator quick reset button)

6. Synchronous supervision of setting value and actual value

7. Wireless romote control(optional)

8. Cervical and lumbar heating(optional)

9. Machine Size: 2200×520×700mm

10. Weight: 90kg

Technical parameters:

1. Power supply: 220V / 50Hz

2. Power: 450W

3. Sizes: main machine: 220×50×73cm auxiliary machine: 56×105×110cm

4. Weight: about 190Kg
