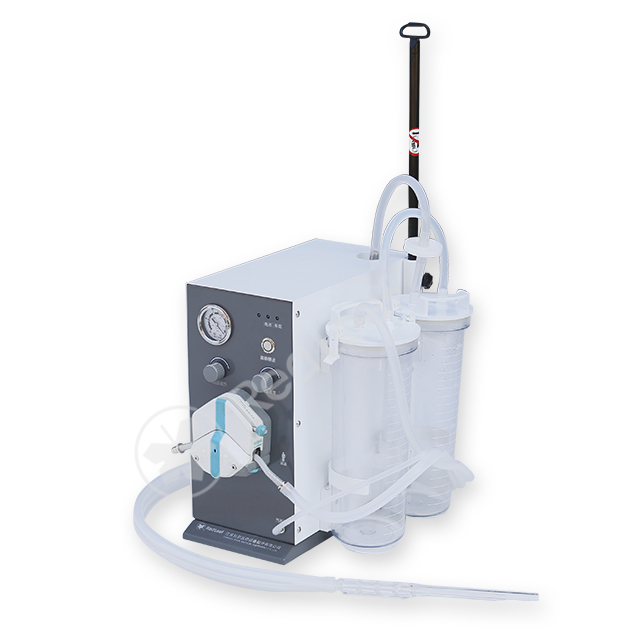

R-CX-20V Surgical Suction Machine

The electric aspirator can meet the most requirements for operating room, ward department, outdoor rescue, etc.
  • R-CX-20V

  • Red Leaf

  • 94029000

Technical features :

  1. The flushing adopts peristaltic pump with stepless speed regulation, and the flushing amount

    can be adjusted arbitrarily.

  2. The suction adopts a low noise negative pressure pump, which is oil free and maintenance free.

    The negative pressure size can be adjusted arbitrarily.

  3. Equipped with a dedicated disposable flushing and suction handle, the operator only needs to

    operate the air valve on the handle to perform flushing and suction conversion operations.

  4. It can continuously and quickly switch between flushing and suction, and can also achieve

    simultaneous flushing and suction.

  5. Equipped with 2pc battery 20V/6Ah , and it can be used with vehicle power supply DC12V .

  6. Small size, light weight, and easy to use, suitable for various levels of hospital environments.

Technical parameters :

1. Ultimate negative pressure value: ≥ -0.09MPa

2. Negative pressure pumping rate: ≥ 27L/min

3. Flushing flow rate: not less than 1000mL/min

4. Liquid collection bottle capacity: 2L × 2

5. Working noise: ≤ 65dB (A)

6. Working power supply: AC220V, 50Hz

7. DC: 12V

8. Battery: 20V/6Ah, continuous working time: 5h

9. Volume: 390×230×370mm

10. Net weight: 13kg
